Beam Mobile: Switching Playmodes
The Beam Mobile features two Playmodes : Wall and Table.
To switch between modes, follow these steps:
To switch between modes, follow these steps:

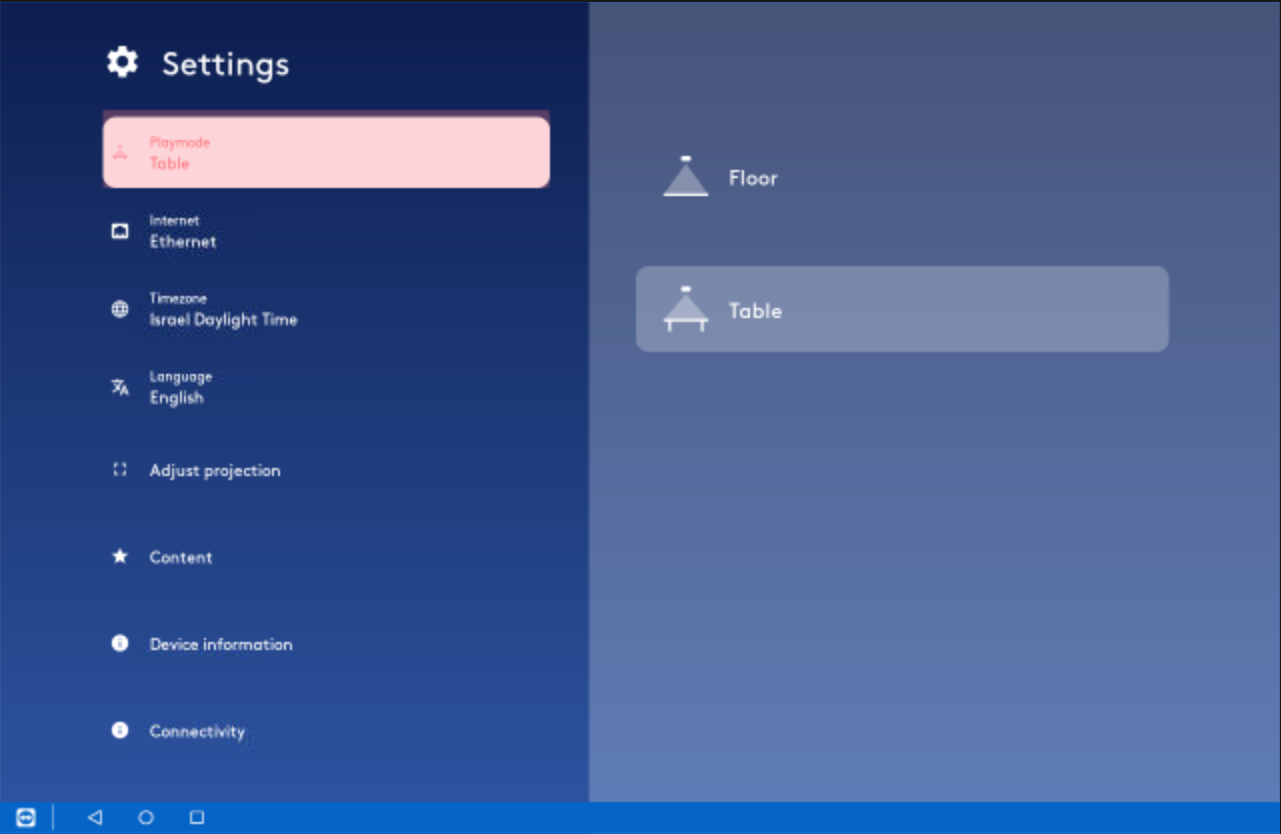

1. Press the Settings button on the remote and select Playmode. Choose the desired projection mode by clicking OK.
2. Press 'Set Playmode'.

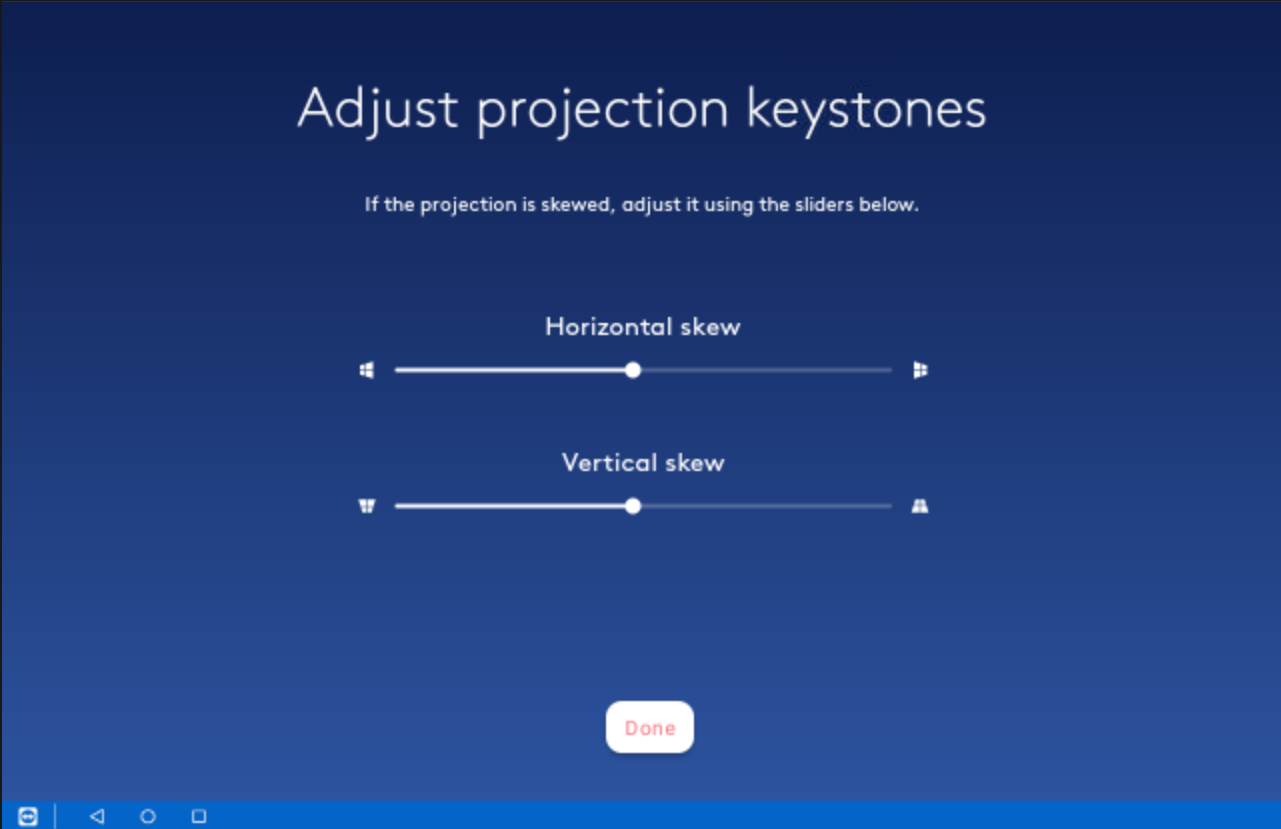

3. At this stage, adjust the display size to fit the frame of the table or floor. If everything looks straight, avoid modifying the display scales and simply press Done.

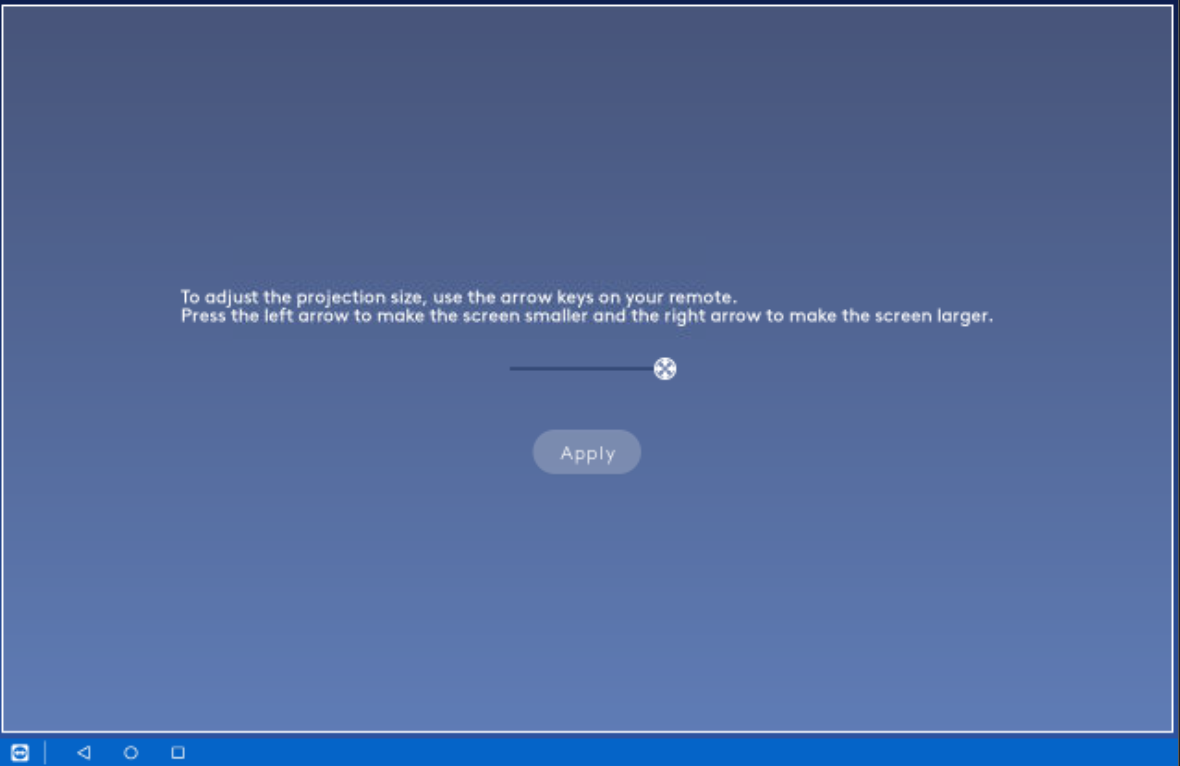

4. Resize the display to fit the table or floor outline.

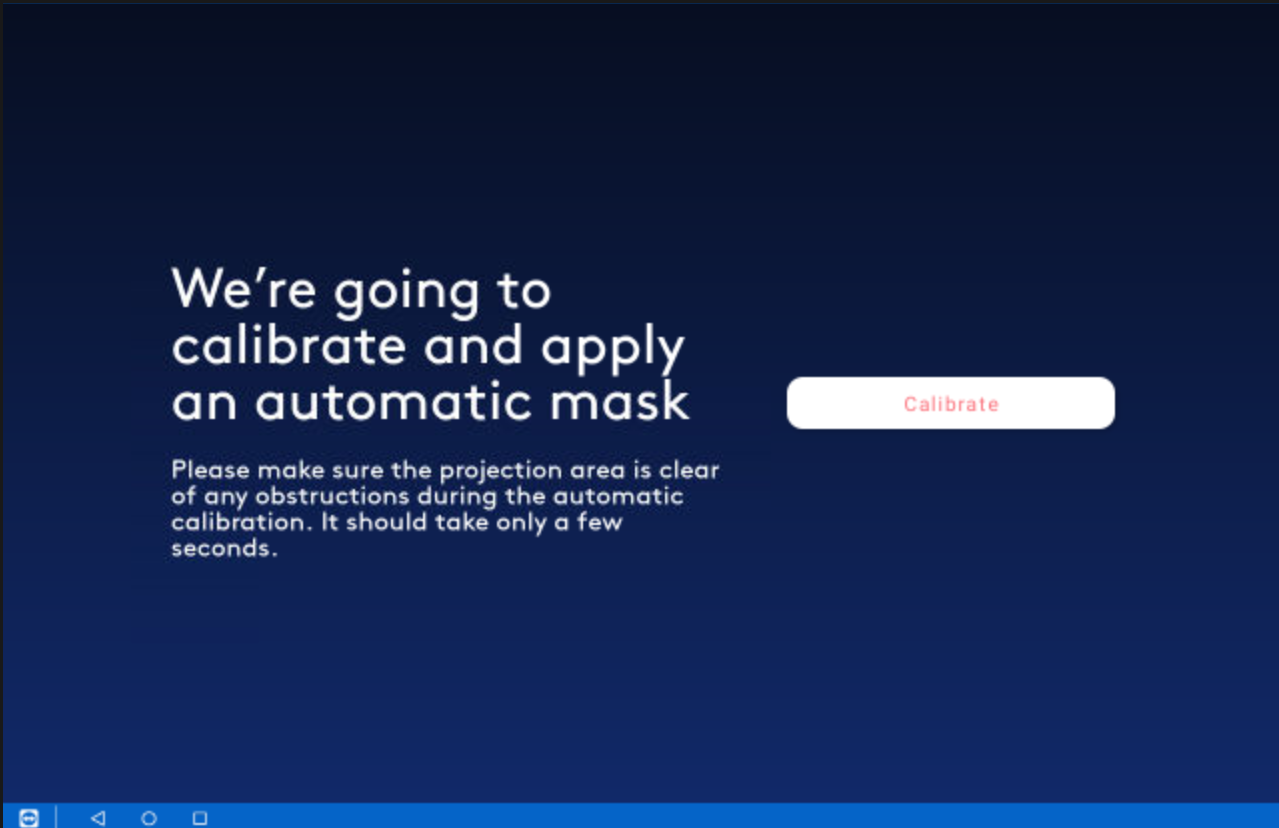

5. Press Calibration. This takes a few minutes, Ensure the surface is clear of objects and people.

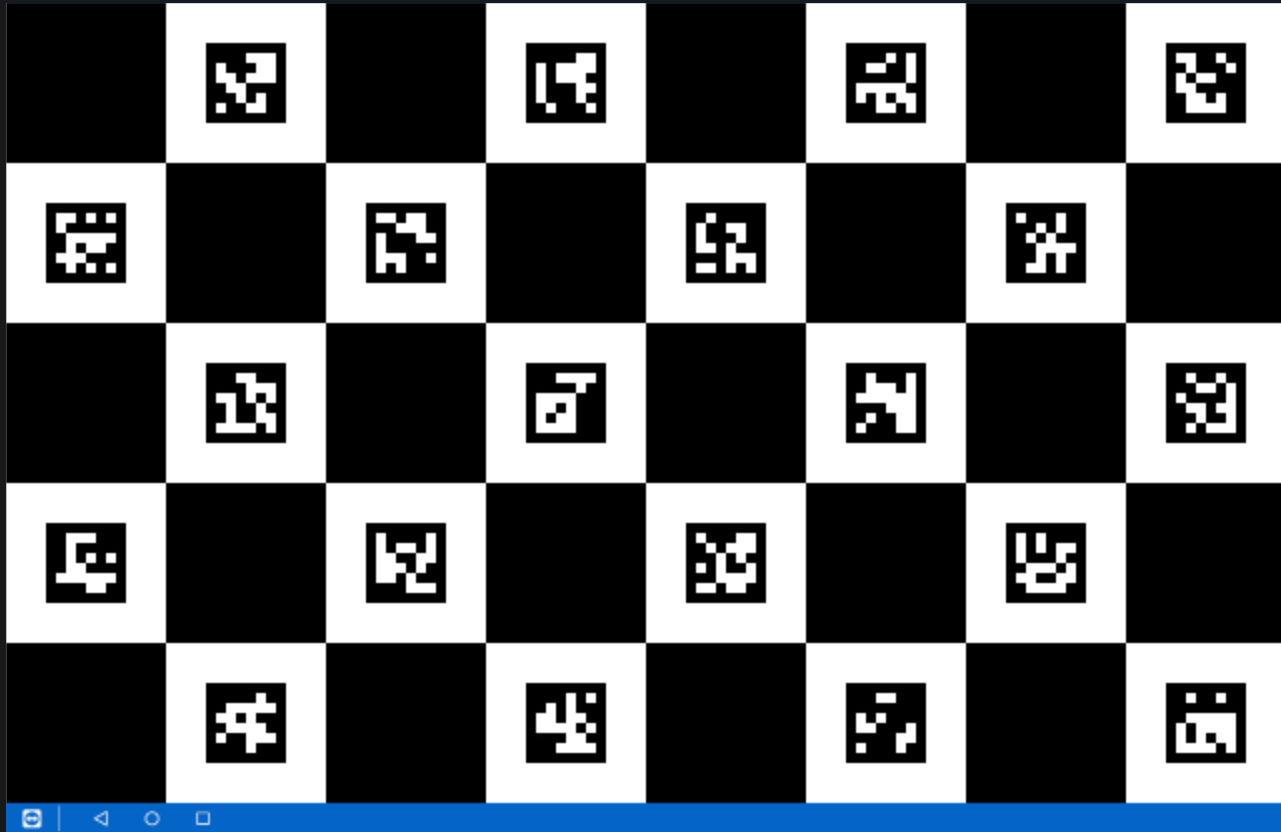

(Calibration Screen)

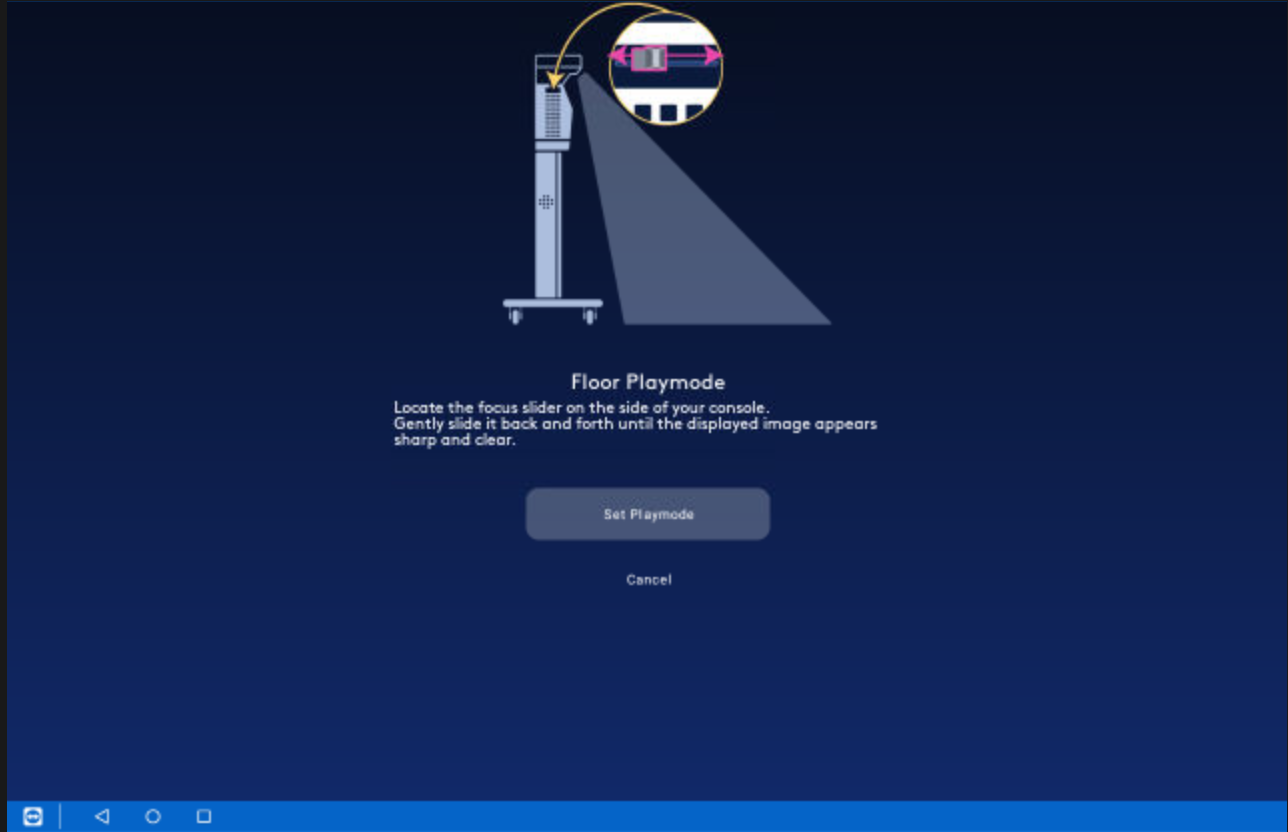

To adjust the projector display, manually move the focus toggle on the left side of the projector until the image is sharp and clear.
